Hot plateStandard Analog & Digital Hotplate

SciLab® Standard Analog & Digital Hotplate “WiseTherm® SHP-A & SHP-D"

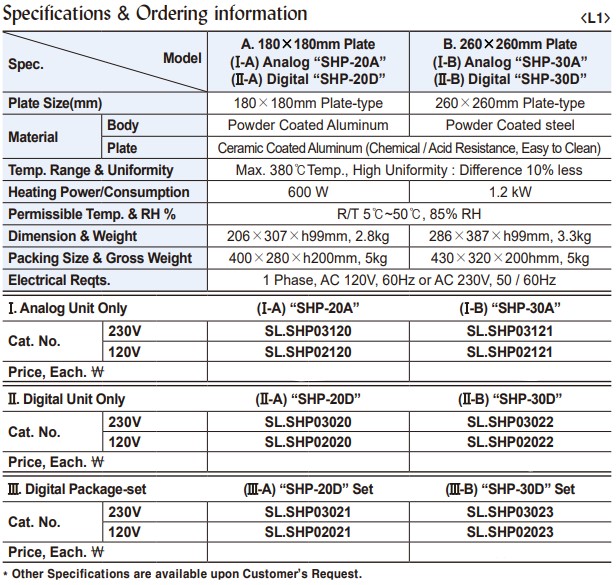

모델명 : SHP-20A, SHP-20D, SHP-30A, SHP-30D

CE Certified
PL(Product Liability) Insurance
With Certificate & Traceability : Controlled by Serial Number, Certificate, Delivery-information, and Traceable Data Base System
Excellent for Sample Drying and most General Lab Heating Applications
Superior Temperature Uniformity : Less than 10% on the Plate at Ambient Temperature

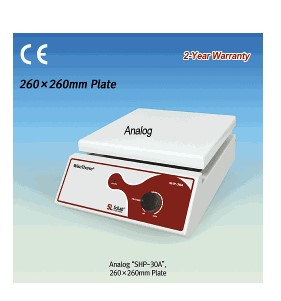

Ⅰ. Analog Control Hotplate “WiseTherm® SHP-A”

Superior Linearity for Temperature Control by Specially Designed Control Circuitry (PWM control)

Ⅱ. Digital Control Hotplate “WiseTherm® SHP-D”

Patented Jog-Shuttle Control System
Digital Feedback Control by High-Performance Microprocessor
Digital LCD Display with Back-Light Function, 0.1℃-Display, 0.5℃-Control
Temperature Accuracy : ±0.3℃ at Set Temp
Safety Circuit : Over Temp Protection
Timer : 99hr 59min (with Continuous run), Error status & Timer-end Alarm
Locking Mode for Experimental Safety Supported (Input to Jog Shuttle can be disabled)
User’s Self-Compensation : to Control Difference between Real Temp & Indicated Temp (±20.0℃)

Ⅲ. Digital Control Hotplate Package-set

Ⅲ-A. “SHP-20D” Set : Complete with ① Hotplate “SHP-20D”

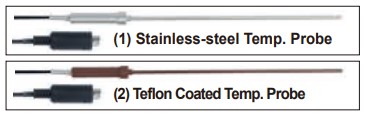

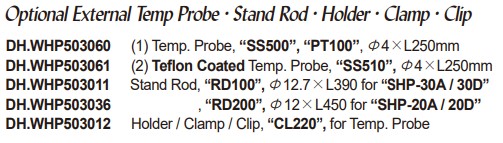

② “SS500” PT100 External / Direct Contact Temp. Probe
③ “RD200” Stainless-steel Support Rod Φ12×L450㎜
④ “CL220” Holder+Clamp+Clip for External Temp. Probe

* Ⅲ-B. “SHP-30D” Set : Complete with ① Hotplate “SHP-30D”
② “SS500” PT100 External / Direct Contact Temp. Probe
③ “RD100” Stainless-steel Support Rod Φ12.7×L390mm
④ “CL220” Holder+Clamp+Clip for External Temp. Probe

Large Plate Digital Hotplate Aluminium-case Flask Heating Mantle
